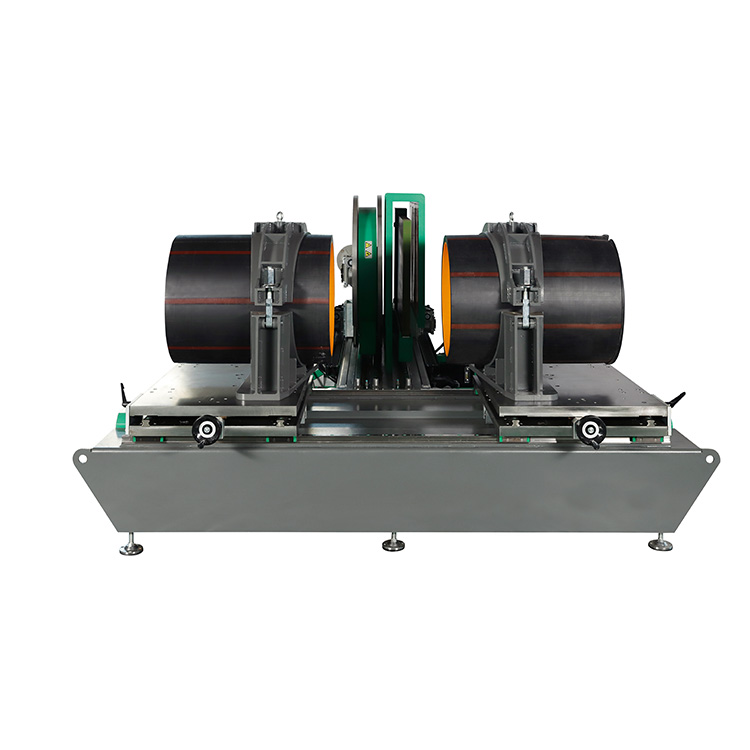

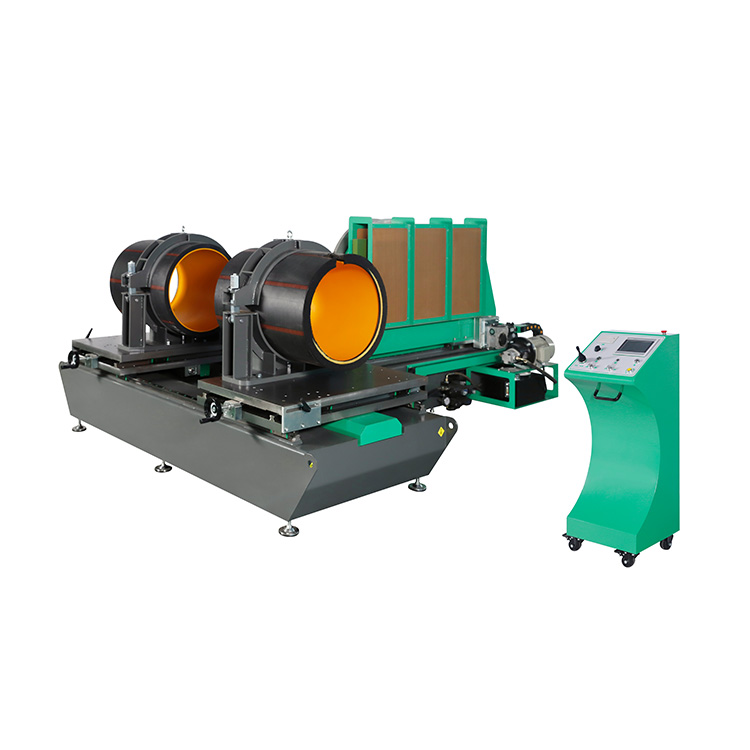

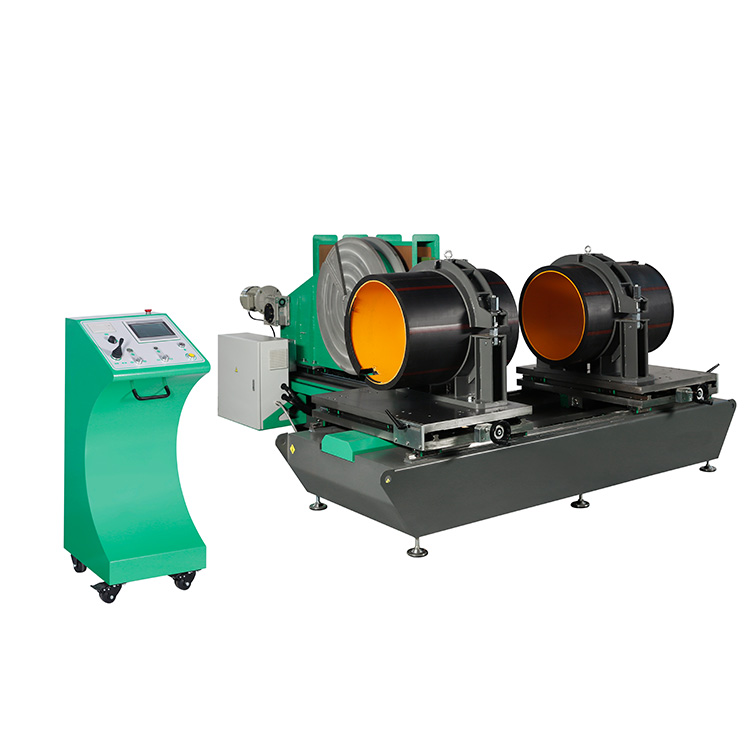

CNC Workshop Welding Machines SWT-MA630/315

Workshop Fitting Welding Machine SWT-MA630/315

Features

Suitable for fabricating elbow, tee, cross and Y shape (45° and 60°)fittingsof PE PP PVDF in workshop.;

Integrated structure. Nothing remains but to choose the differentspecial clamps while fabricating different fittings;

High accuracy temperature controller;

Difference in heating plate surface temperature ≤±5°;

Environment temperature:-10° ～ 45°;

Electronic count-down timer for heating and cooling time;

Removable PTFE coated heating plate.

Electric planing tool with safety limit switch.

Low starting pressure and high reliable seal structure.

Separate two-channel timer records time in soaking and cooling phases with alert.

High and accurate and shockproof pressure meter indicates clearer readings.

Digital pressure meter is installed on machines.

Reliable performance, easy control.

Optional parts: 45°, 60°Y Tee clamp.

Specifications

Ranges of tee:315mm-630mm

Ranges of cross: 315mm-630mm

Ranges of elbow(n×1°): 315mm-630mm

(315mm-355mm-400mm-450mm-500mm-560mm-630mm)

Ranges of application: PE,PP and PVDF

Working voltage:380V ±10%,50/60Hz

Total power:28.2KW, including:

Planing tool motor:2.2 kW,

Heating plate:22 kW,

Hydraulic unit motor:4 kW

Working voltage:415V ±10%,50/60Hz

Total power: 34.2kW, including:

Planing tool motor:4 kW,

Heating plate:26.2 kW,

Hydraulic unit motor: 4 kW (fitting (Y shape fitting clamps included) clamps are provided as requested)

Whole machine consists of four parts:

Basic frame ( including: heating plate, planing tool, and hydraulic system), elbow clamps, tee clamps, and cross clamps.

All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)

International warranty: 24months.

Any parts broken or does not work under normal operating,we are free to provide.
