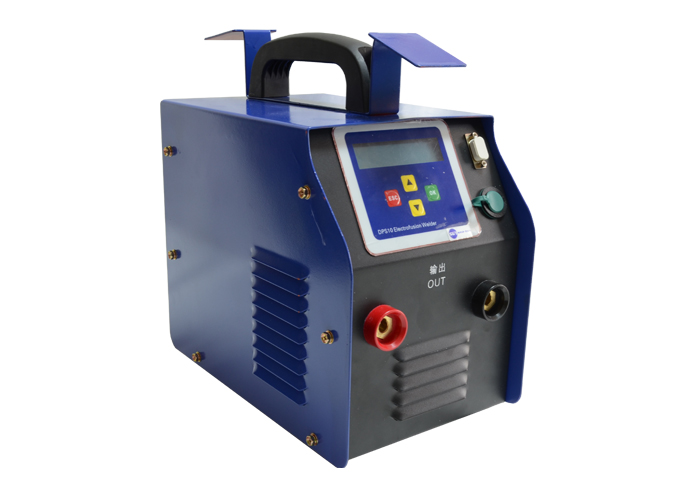

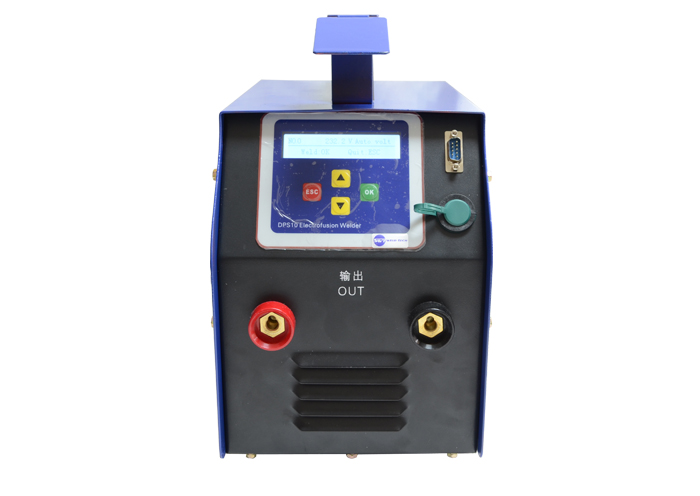

DPS-8KW Electrofusion Machines
Electrofusion welding machine includes 3.5Kw,8Kw,12Kw,15Kw.
3.5Kw electro fusion welding machine can provide with maximun 48V welding voltage on the constant voltage control mode,
8Kw electro fusion welding machine provides with maximum 130V.The 12Kw provide with up to 170V,which is used to welding compound pipes.
Electrofusion welding machine is the special connecting device used to electro fusion connect polythene pressure and no perssure conduit.
All the characteristics of this electrofusion welding machine have achieved international standard ISO12176-2,and even higher,
it is the perfect corollary equipement for every pe pipe manufactures and construction units.
Application and features:
DPS series electrofusion welding machine using true RMS control,
is mainly used in connection of gas or water polyethylene (PE) pipes and fittings.
It is the perfect corollary equipment for every PE pipe, pipe fitting manufactures and construction units.
The machine has higher performance than the international standard ISO12176-2 in welding voltage
stability, welding time accuracy and the temperature detection accuracy, etc.
DPS series electrofusion welding machine using true RMS control,
is mainly used in connection of gas or water polyethylene (PE) pipes and fittings.
It is the perfect corollary equipment for every PE pipe, pipe fitting manufactures and construction units.
The machine has higher performance than the international standard ISO12176-2 in welding voltage
stability, welding time accuracy and the temperature detection accuracy, etc.
Features
1.Advanced MCU as control unit, with abundant parameter settings, detection and perfect protection,
2. Fast response to sudden power change (500 ~ 800ms), excellent stability,
3.Wide voltage Input: AC170V - 270V, adapt to site grid,
4.High brightness LCD display, Chinese or English operation, user-friendly HMI,
5.Output voltage / current / heat, past welding time / remaining time, welding status,browser on any input data,
6.Suppression of harmonic output,
7.Protection of cable moving parts with flexible connection,
8.IP rating 54, guaranteed normal use in harsh environment.
1.Advanced MCU as control unit, with abundant parameter settings, detection and perfect protection,
2. Fast response to sudden power change (500 ~ 800ms), excellent stability,
3.Wide voltage Input: AC170V - 270V, adapt to site grid,
4.High brightness LCD display, Chinese or English operation, user-friendly HMI,
5.Output voltage / current / heat, past welding time / remaining time, welding status,browser on any input data,
6.Suppression of harmonic output,
7.Protection of cable moving parts with flexible connection,
8.IP rating 54, guaranteed normal use in harsh environment.
